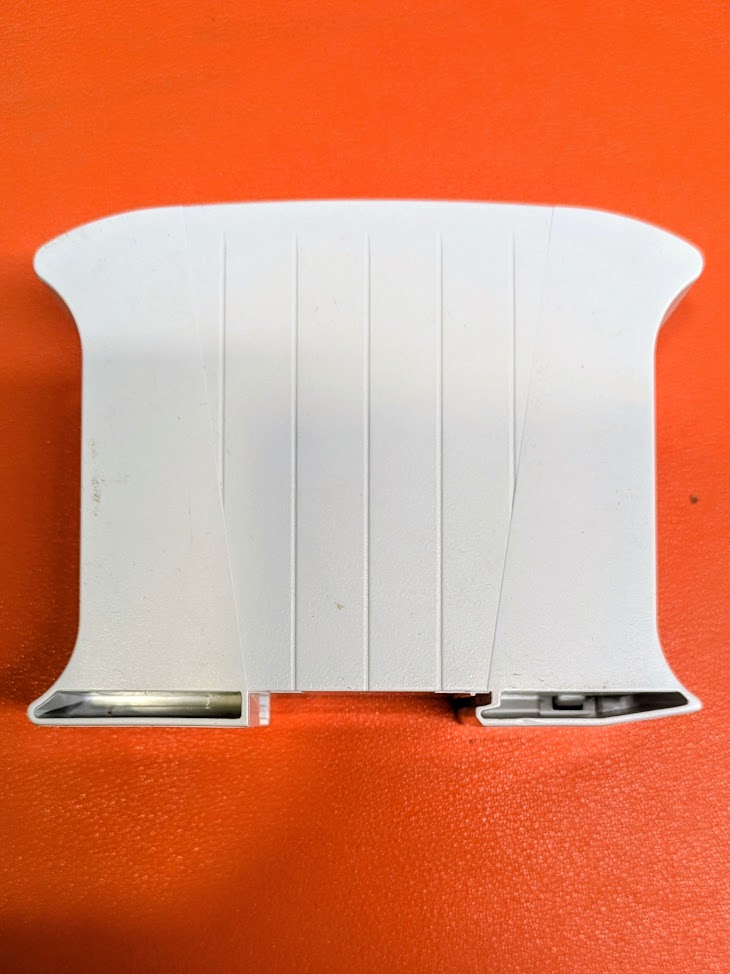

CreeperX
Protocol GatewayIn Stock

CreeperX

Bridging BACnet and Modbus for seamless building automation.

The CreeperX is a powerful protocol gateway that connects BACnet MS/TP or BACnet/IP building automation systems with Modbus RTU or Modbus TCP/IP industrial networks. Designed for DIN rail mounting in control panels, it enables straightforward integration between HVAC controllers, PLCs, energy meters, and building management systems without custom software.

Key Specs

BACnet MS/TP + IPModbus RTU + TCP/IPRS-485 portEthernet RJ45DIN Rail compatible
Enquire

Technical Specifications

Protocols
Protocol ABACnet MS/TP, BACnet/IP
Protocol BModbus RTU, Modbus TCP/IP
BACnet ObjectsAI, AO, AV, BI, BO, BV
Modbus FunctionsFC01, FC02, FC03, FC04, FC05, FC06, FC15, FC16
Connectivity
Serial PortRS-485 (screw terminal)
EthernetRJ45, 10/100 Mbps
Baud Rate1200 – 115200 bps
Power
Supply Voltage12–24 V DC / 24 V AC
Power Consumption< 3 W
ConnectorScrew terminal
Operating Conditions
Operating Temperature-20°C to +70°C
Humidity5% to 90% non-condensing
ProtectionIP20
Mechanical
MountingDIN Rail (EN 60715 TH35)
EnclosureABS plastic
Dimensions90 × 70 × 58 mm
Weight145 g
