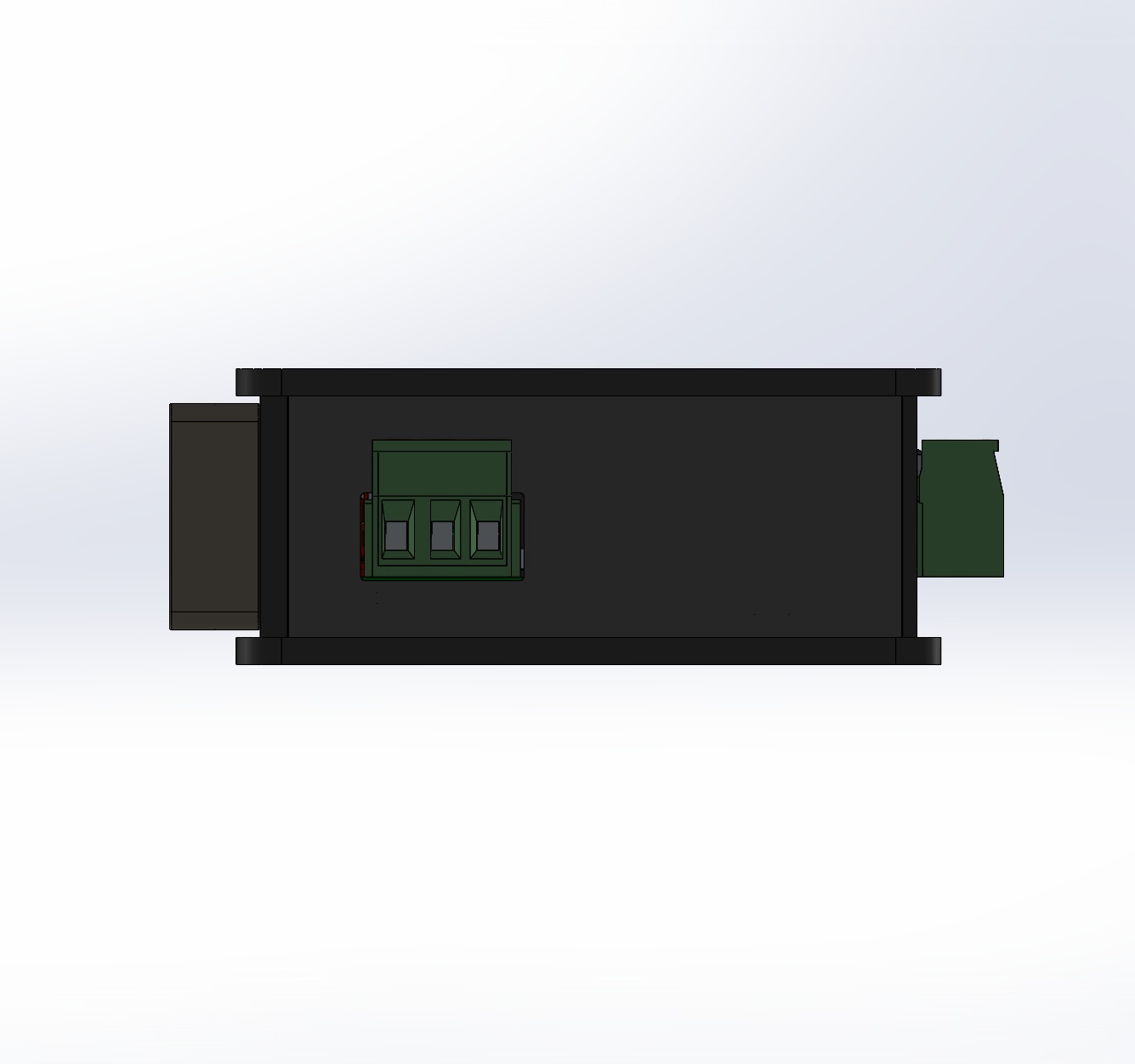

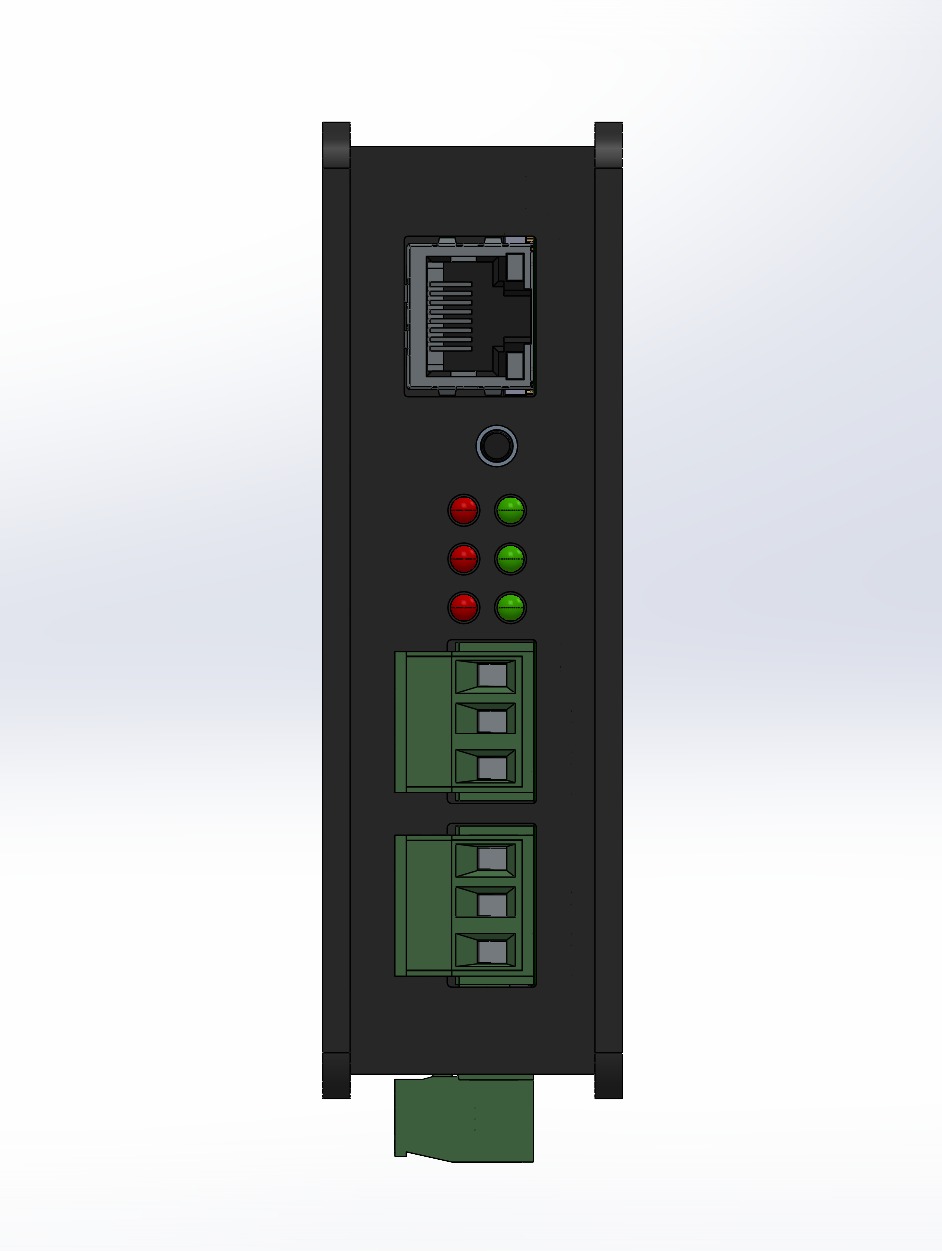

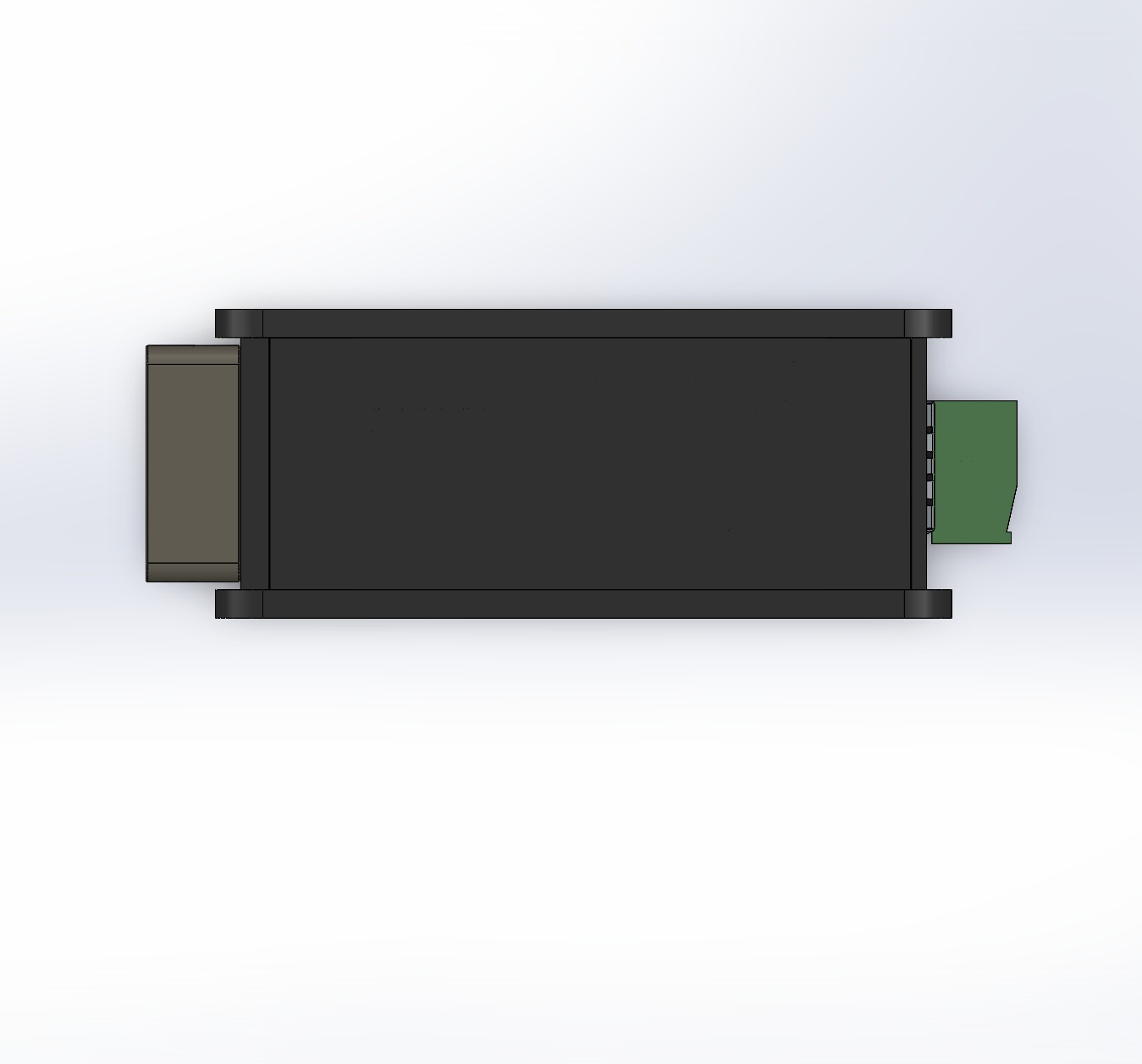

Creeper NS-MBGW
Protocol GatewayIn Stock

Creeper NS-MBGW

Modbus to BACnet gateway for seamless building automation integration.

The Creeper NS-MBGW is an industrial Modbus / BACnet gateway that bridges serial and IP-based building automation protocols. Built on an ARM Cortex-A7 processor with isolated RS-485, it supports six protocol conversion modes and is configured entirely via a web interface — no software installation required. Available in one-port (NS-MBGW-001) and two-port (NS-MBGW-002) variants.

Key Specs

Modbus RTU / IPBACnet MS/TP + IP3KV Isolated RS-485ARM Cortex-A7Web ConfigurationDIN Rail MountRoHS Compliant
Enquire

Technical Specifications

Protocols
Supported ConversionsModbus RTU ↔ BACnet IP, BACnet MS/TP ↔ BACnet IP, Modbus RTU ↔ Modbus IP, Modbus IP ↔ BACnet IP, BACnet IP ↔ Modbus IP, BACnet MS/TP ↔ Modbus IP
Hardware
ProcessorARM Cortex-A7 @ 528 MHz
RAM512 MB DDR3
Storage4 GB eMMC
Communication
Ethernet10/100 Mbps
RS-4852-wire, 3KV Isolated
RS-485 Ports1 (NS-MBGW-001) / 2 (NS-MBGW-002)
Baud Rate9600, 19200, 38400, 76800, 115200 bps
ParityNone, Even, Odd
Power
DC Input9 – 36 V DC
AC Input12 – 24 V AC
Max Consumption18 W @ 24 V DC
Operating Conditions
Operating Temperature0°C to +85°C
Storage Temperature-20°C to +85°C
Humidity95% RH, Non-Condensing
Mechanical
HousingAluminium
Mounting35mm DIN Rail
Dimensions113.20 × 106.30 × 32.64 mm
Compliance
EmissionEN61000-6-3
ImmunityEN61000-6-2
SafetyEN61010-1, UL916C
OtherEN61326-1, RoHS
Configuration
MethodWeb interface
Country of OriginIndia
